1. Introduction

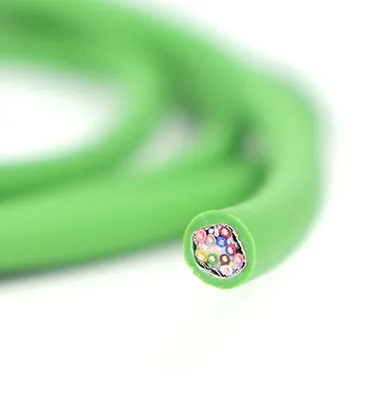

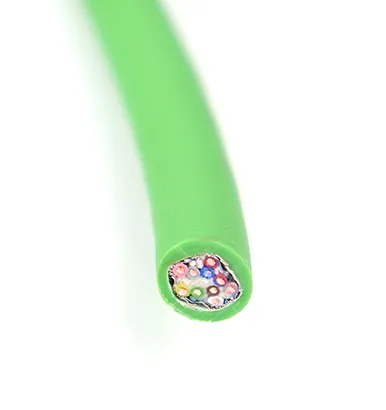

The Flexible Encoder Cable is an essential component for modern motion control, robotics, and industrial automation systems. Designed to provide accurate signal transmission under dynamic conditions, these cables are built with high-flex copper conductors, multi-layer shielding, and durable outer jackets to withstand repeated bending, torsion, and vibration.

Flexible encoder cables are widely used in servo motors, encoders, robotic arms, CNC machines, and automated assembly lines. Their robust construction ensures long-term reliability, signal integrity, and high mechanical resistance, even in challenging industrial environments.

With global certifications including UL, CE, RoHS, and REACH, our cables meet international quality and environmental standards, making them suitable for a wide range of automation applications.

2. Product Highlights

3. Technical Specifications

4. Performance Testing

Ensuring the reliability and durability of flexible encoder cables requires rigorous performance testing. Each cable undergoes multiple tests to guarantee mechanical and electrical integrity in industrial applications.

4.1 Flex Life Test

• Tested for 10 million bending cycles in dynamic motion environments.

• Ensures no conductor breakage, outer jacket damage, or shielding failure occurs under continuous operation.

4.2 Electrical Testing

• Insulation resistance measurement ensures signal integrity and prevents short circuits.

• Conductor continuity testing verifies proper power and data transmission.

4.3 Temperature and Chemical Resistance

• Cables are subjected to extreme heat and cold to confirm performance from -40°C to +105°C.

• Oil, coolant, and chemical resistance tests ensure suitability in industrial environments.

4.4 EMI/RFI Shielding Evaluation

• Multi-layer shielding is tested against electromagnetic and radio frequency interference.

• Guarantees stable signals for encoders, servo motors, and feedback devices.

4.5 Mechanical Stress Testing

• Tensile, compression, and abrasion resistance tests confirm durability.

• Ensures cables maintain integrity when installed in cable chains or robotic arms.

5. Daily Maintenance

Proper maintenance of flexible encoder cables extends their service life and ensures consistent performance.

5.1 Regular Inspection

• Check for visible damage to outer jacket or connectors.

• Ensure shielding layers are intact and there are no kinks or twists.

• Measure insulation resistance and continuity periodically.

5.2 Cleaning

• Use a soft cloth with mild detergent or neutral cleaning solution.

• Avoid strong solvents such as acetone or benzene.

• Ensure cables are fully dry before operation.

5.3 Handling Guidelines

• Avoid exceeding the recommended bending radius.

• Use proper cable routing in dynamic machinery.

• Prevent twisting or pulling during installation.

5.4 Storage Recommendations

6. Customer Feedback

Feedback from our clients demonstrates the high reliability and performance of our flexible encoder cables:

• Automation Equipment Manufacturer, Germany:
  "The cables provided consistent signal transmission in our robotic assembly lines for over 2 years with zero downtime."

• CNC Machine Supplier, USA:
  "Installation was straightforward, and the flexibility of the cables made routing in tight spaces easy. Excellent shielding performance."

• Robotics Integrator, Japan:
  "Durable cables that withstand continuous bending cycles, even in high-speed motion applications."

Customer satisfaction confirms the quality, durability, and long-term reliability of our encoder cables.

7. Usage Recommendations

To ensure optimal performance of flexible encoder cables, follow these best practices:

1. Select the Correct Cable Type:
   Match cable size, shielding, and jacket material to your application (servo motor, encoder, or sensor).

2. Proper Routing:
   Install cables in flexible cable chains or along motion paths to avoid excessive bending stress.

3. Avoid Sharp Bends:
   Always maintain a minimum bending radius ≥ 5× cable diameter.

4. Secure Connections:
   Use appropriate strain reliefs and connectors to prevent cable movement at connection points.

5. Monitor Dynamic Wear:
   Track bending cycles and inspect for early signs of wear in high-motion applications.

6. Environmental Protection:
   Avoid exposure to chemicals or conditions beyond the cable’s rated tolerance.

8. Accessories and Complementary Components

Our flexible encoder cables can be used with a variety of accessories to simplify installation and improve system reliability.

These accessories enhance durability, safety, and ease of installation in dynamic applications.

9. Comparison with Standard Cables

Flexible encoder cables outperform standard control cables in dynamic applications, ensuring signal accuracy and long-term reliability.

10. Quality Assurance and Testing Procedures

Every cable is subjected to strict quality control:

• Dynamic Flex Life Testing

• Insulation Resistance & Continuity Verification

• Mechanical Stress & Abrasion Testing

• Thermal & Chemical Resistance Assessment

• EMI/RFI Shielding Efficiency Evaluation

Certified processes guarantee product reliability, making our cables ideal for critical motion control systems.

11. Installation Guidelines

• Always follow manufacturer-recommended bending radius and cable routing paths.

• Install cables in flexible cable chains where repeated motion occurs.

• Ground shielding properly to reduce electromagnetic interference.

• Avoid excessive tension and twisting during installation.

• Conduct post-installation inspection to ensure proper operation.

12. SEO Keywords

flexible encoder cable, shielded encoder cable, motion control cable, robotic signal cable, Servo Motor Cable, automation feedback cable, high-flex cable, industrial encoder wiring, dynamic motion cable, UL CE RoHS cable, automation system wiring.

13. Conclusion

The Flexible Encoder Cable is designed for high-precision, dynamic applications in modern automation systems. With excellent flexibility, robust shielding, chemical and temperature resistance, and long service life, these cables ensure reliable signal transmission in even the most demanding environments.

Proper installation, routing, and maintenance maximize cable lifespan and performance. Combined with our compatible connectors and cable chains, flexible encoder cables provide a complete, reliable wiring solution for robotics, CNC machines, and industrial automation.

Choose our flexible encoder cables to achieve greater reliability, efficiency, and accuracy in every motion control application.
