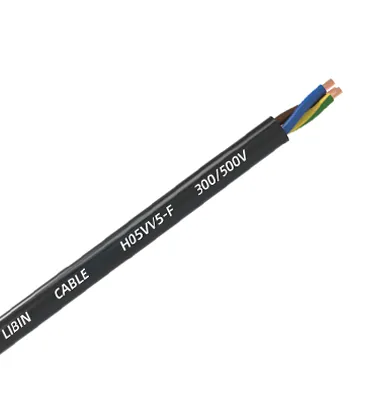

H05VV5-F 300/500V

Copper Core PVC Insulated PVC Sheathed Flexible Cable

Applications

These cables are suitable for use in dry, humid environments, but not in outdoor use. They are used as shielded terminations and connecting lines in control, measurement, and signaling technology.

The copper wire braid shields against external interference, such as electromagnetic fields and stray frequencies. They are used as signal and pulse cables in industrial plants, machinery, and process control and inspection systems.

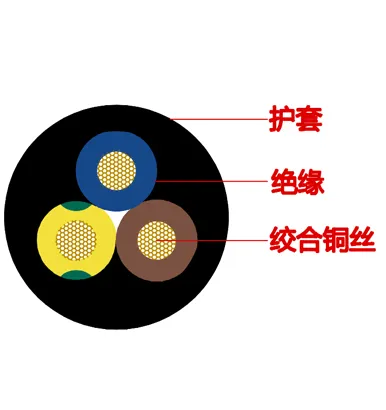

Product Structure

Reference Standard: VDE 0281.13

Conductor: Multiple finely stranded bare copper wires, in accordance with EN 60228, Category 5 conductor

Insulation: Environmentally friendly PVC

Filling (optional): Mesh polypropylene or cotton

Sheath Material: Oil-resistant PVC

Sheath Color: Black and other colors

Wire Color: Color-coded or black with printed numbers

Technical Parameters

Rated Voltage: 300/500V

Test Voltage: 2000V

Rated Temperature: -15°C to +70°C

Minimum Bend Radius:

Fixed Installation: 6 x Cable OD

Mobile Installation: 15 x Cable OD

Environmental Requirements: RoHS and REACH Compliant

Flame Retardant: Complies with IEC 60332-1-2

Outer Sheath Oil Resistance: Complies with IEC 60811-2-1

Product Features

Mechanical Properties: Average

Good Peelability
