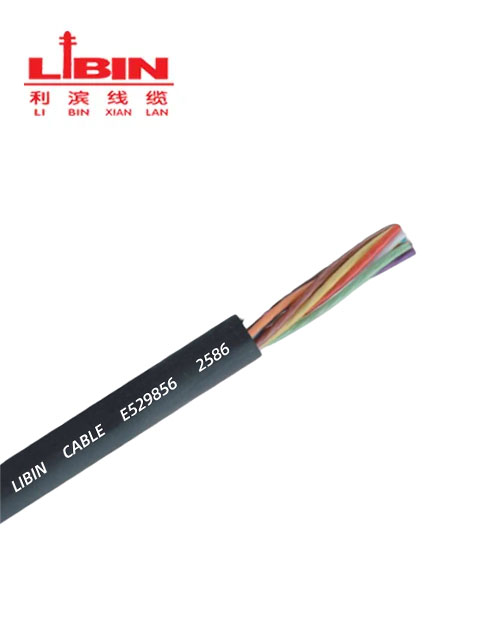

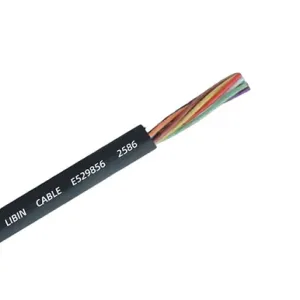

UL2586
105°C, 600V, 1000V PVC Non-Integral Sheathed Multi-Conductor Cable
Applications
Suitable for internal and external wiring of electronic equipment. Can also be used as measurement, testing, and control cables in equipment manufacturing, complete equipment installation projects,
Power stations, heating and large central air conditioning systems, office automation equipment, and data processing systems.
Product Structure
Standards: UL758, UL1581
Conductor: Single or stranded bare/tinned copper wire
Specifications: Minimum 40AWG
Insulation: Environmentally friendly PVC
Inner Jacket (Optional): Environmentally friendly PVC
Shield (Optional): Tinned/bare copper wire braid density ≥ 80%
Jacket: Environmentally friendly PVC
Color: Customizable
Technical Parameters
Rated Voltage: 600V - 1000V
Rated Temperature: 105°C
Minimum Bend Radius:
Fixed Installation: 5x Cable OD
Mobile Installation: 10x Cable OD
Flame Retardant: Passes the ULVW-1 vertical flame test
Environmental Requirements: RoHS and REACH Compliant
Product Model
UL2586 105°C 600V Multi-core Unshielded Cable
UL2586 105°C 600V Multi-core Shielded Cable
UL2586 105°C 600V Multi-core Shielded Cable with Inner Sheath
Product Features
Uniform insulation thickness, easy to strip and cut
Heat-resistant and flame-retardant, environmentally friendly, excellent insulation performance, stable transmission
Product Parameters
| UL Model | Specification (AWG) | Conductor structure TXR(mm) | Insulation thickness (mm) | Approximate outer diameter of insulation (mm) | Sheath thickness (mm) | Approximate outer diameter of cable ( mm ) | Conductor resistance at 20℃ max (Ω/km) |
| UL2586105℃ 600V多芯非屏蔽 电缆 | 26AWG*2C | 7/0.16 | 0.76 | 2.1 | 0.76 | 5.72 | 149.94 |
| 26AWG*3C | 2.1 | 0.76 | 6.056 | ||||
| 26AWG*4C | 2.1 | 0.76 | 6.602 | ||||
| 26AWG*5C | 2.1 | 0.76 | 7.19 | ||||
| 26AWG*6C | 2.1 | 0.76 | 7.82 | ||||
| 24AWG*2C | 1/0.16 | 0.76 | 2.2 | 0.76 | 5.92 | 93.25 | |
| 24AWG*3C | 2.2 | 0.76 | 6.272 | ||||
| 24AWG*4C | 2.2 | 0.76 | 6.844 | ||||
| 24AWG*5C | 2.2 | 0.76 | 7.46 | ||||
| 24AWG*6C | 2.2 | 0.76 | 8.12 | ||||
| 22AWG*2C | 17/0.16 | 0.76 | 2.4 | 0.76 | 6.32 | 59.7 | |
| 22AWG*3C | 2.4 | 0.76 | 6.704 | ||||
| 22AWG*4C | 2.4 | 0.76 | 7.328 | ||||
| 22AWG*5C | 2.4 | 0.76 | 8 | ||||
| 22AWG*6C | 2.4 | 0.76 | 8.72 | ||||
| 20AWG*2C | 26/0.16 | 0.76 | 2.6 | 0.76 | 6.72 | 37.6 | |
| 20AWG*3C | 2.6 | 0.76 | 7.136 | ||||
| 20AWG*4C | 2.6 | 0.76 | 7.812 | ||||
| 20AWG*5C | 2.6 | 0.76 | 8.54 | ||||
| 20AWG*6C | 2.6 | 0.76 | 9.32 | ||||
| 18AWG*2C | 41/0.16 | 0.76 | 2.8 | 0.76 | 7.12 | 23.6 | |
| 18AWG*3C | 2.8 | 0.76 | 7.568 | ||||
| 18AWG*4C | 2.8 | 0.76 | 8.296 | ||||
| 18AWG*5C | 2.8 | 0.76 | 9.08 | ||||
| 18AWG*6C | 2.8 | 0.76 | 9.92 | ||||
| 16AWG*2C | 25/0.254 | 0.76 | 3.1 | 0.76 | 7.72 | 14.9 | |
| 16AWG*3C | 3.1 | 0.76 | 8.216 | ||||
| 16AWG*4C | 3.1 | 0.76 | 9.022 | ||||
| 16AWG*5C | 3.1 | 0.76 | 9.89 | ||||
| 16AWG*6C | 3.1 | 0.76 | 10.82 | ||||
| 14AWG*2C | 41/0.254 | 0.76 | 3.5 | 0.76 | 8.52 | 9.34 | |
| 14AWG*3C | 3.5 | 0.76 | 9.08 | ||||
| 14AWG*4C | 3.5 | 0.76 | 9.99 | ||||
| 14AWG*5C | 3.5 | 0.76 | 10.97 | ||||
| 14AWG*6C | 3.5 | 0.76 | 12.02 |
Power Control Cables are essential components in industrial, commercial, and infrastructure applications, designed to provide stable power distribution and reliable control signal transmission. Built with high-quality conductors, robust insulation, and shielding, these cables deliver exceptional performance, safety, and durability even in demanding environments. They are widely used in machinery, automation systems, energy facilities, and electrical installations where consistent operation is critical.
Regular maintenance ensures long-term performance and prevents unexpected failures.
Inspect visually for cuts, abrasions, or deformation.
Verify that connectors and terminals are secure.
Clean cables using a dry or slightly damp cloth.
Inspect insulation and jackets for signs of wear or chemical damage.
Conduct electrical testing (continuity, insulation resistance).
Check for electromagnetic interference (EMI) issues.
Comprehensive inspection and testing of cable systems.
Replace cables that show significant mechanical or electrical wear.
| Frequency | Tasks | Purpose |
|---|---|---|
| Daily | Visual inspection, check connections | Prevents early failures |
| Monthly | Clean, inspect insulation | Maintains cable integrity |
| Quarterly | Electrical testing, EMI checks | Ensures safety and performance |
| Annually | Comprehensive inspection, replacement | Guarantees long-term reliability |
To ensure safe and efficient operation, follow these important precautions:
Avoid Overloading – Do not exceed rated voltage and current capacity.
Correct Routing – Prevent sharp bends, kinks, or mechanical stress.
Temperature Control – Operate within the recommended temperature range.
Chemical Resistance – Keep away from corrosive substances unless jacket is chemical-resistant.
Proper Grounding – Always ensure correct grounding to avoid electrical hazards.
| Precaution | Risk Prevented |
|---|---|
| Avoid Overloading | Prevents overheating, fire |
| Correct Routing | Avoids mechanical damage |
| Temperature Control | Prevents insulation failure |
| Chemical Resistance | Prevents jacket degradation |
| Proper Grounding | Prevents electric shock |
A proper installation process ensures optimal cable performance and safety.
Verify cable specifications, length, and voltage ratings.
Inspect for physical damage before installation.
Plan the path to avoid sharp edges, high heat zones, and mechanical stress.
Maintain the manufacturer’s recommended bend radius.
Ensure connectors are compatible and terminals are secure.
Use tightening tools as recommended to avoid loose connections.
Use cable clamps or ties, ensuring they are not over-tightened.
Label cables clearly for identification.
Perform continuity and insulation resistance tests.
Verify system power and control signals are stable.

| Step | Action | Notes |
|---|---|---|
| Preparation | Verify specifications, inspect cable | Prevents incorrect installation |
| Routing | Avoid sharp edges, maintain bend radius | Protects against mechanical stress |
| Connection | Secure connectors and terminals | Ensures reliable power distribution |
| Securing | Use clamps/ties, label cables | Facilitates maintenance and safety |
| Testing | Perform electrical checks | Confirms correct installation |
Power Control Cables typically include a manufacturer warranty to guarantee quality and reliability.
Duration: 12 to 36 months depending on supplier.
Coverage: Manufacturing defects, conductor faults, and insulation failure.
Exclusions: Damage from improper installation, overloading, or environmental misuse.
Available upon request for large-scale industrial projects.
Includes periodic maintenance services and technical support.
| Warranty Type | Duration | Coverage | Exclusions |
|---|---|---|---|
| Standard Warranty | 12–36 months | Defects in materials and workmanship | Misuse, overloading, improper installation |
| Extended Warranty | Custom (on demand) | Includes maintenance support | As per contract terms |
Power Control Cables are critical for stable power distribution and efficient control signal transmission in industrial and commercial systems. By following proper installation guidelines, adhering to maintenance schedules, and observing safety precautions, users can maximize the lifespan and performance of these cables. With manufacturer warranties and optional extended coverage, businesses can ensure operational safety, reduced downtime, and long-term cost efficiency.
