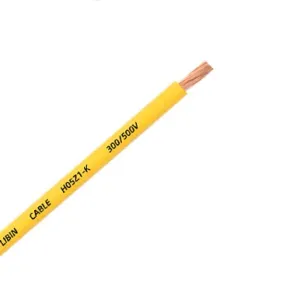

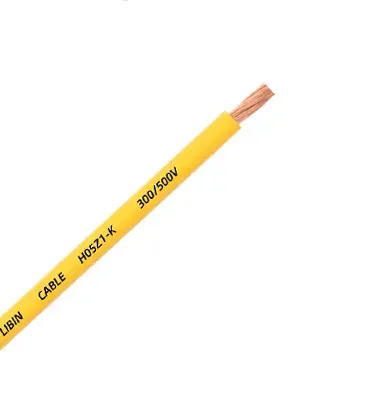

H05Z1-K 300/500V
Low-Smoke, Halogen-Free, Cross-Linked Polyolefin Insulated Flexible Cable
Applications
Suitable for applications requiring high flame retardancy, such as subways, high-rise buildings, shopping malls, theaters, power plants, chemical plants, city squares, and other public utilities. The low corrosiveness of combustion gases prevents damage to equipment. The low-smoke, halogen-free properties significantly enhance the cable material's resistance to aging, UV rays, and other radiation, thereby extending the cable's service life.
Product Structure
Applicable Standard: EN 50525-3-41
Conductor: Stranded fine-grained bare copper wire, compliant with IEC 60228, Category V conductor
Insulation: Cross-linked polyolefin
Color: Customizable upon request
Technical Parameters
Rated Voltage: 300/500V
Test Voltage: 2000V
Rated Temperature: -40°C to +90°C
Minimum Bend Radius: 6 x Cable OD
Flame Retardant: Complies with EN 60332-1-2
Smoke Density: Complies with EN 61034-2
Halogen-Free: Complies with EN 50525-1
Product Features
Low smoke and flame retardancy during combustion
No toxic gases released in the event of a fire
Product Parameters
Nominal cross-sectional area (mm²) | Insulation thickness （mm） | Cable outer diameter（mm） | Conductor resistance at 20°C.max（Ω/km） | Copper wire weight（kg/km） | Cable weight（kg/km） |
| 0.5 | 0.6 | 2.2 | 39 | 4.8 | 8 |
| 0.75 | 0.6 | 2.3 | 26 | 7.2 | 12 |
| 1 | 0.6 | 2.5 | 19.5 | 9.6 | 15.4 |
