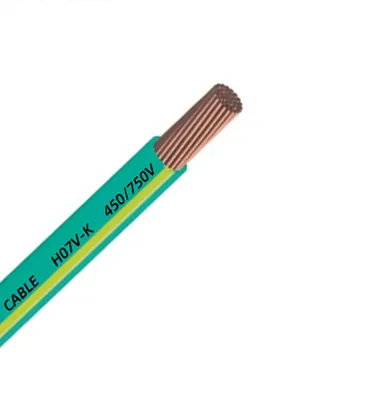

H07V-K 450/750V
Copper Core PVC Insulated Flexible Wire
Applications
This cable is widely used in electrical wiring, electronic instruments, automobiles, distribution cabinets, automation equipment, controller wiring, and other industries. It can also be used for indoor electrical appliances, home appliances, mechanical equipment installation wiring, power and lighting wiring, and more.
Product Structure
Reference Standard: EN 50525-2-31
Conductor: Stranded fine-grained bare copper wire, compliant with IEC 60228, Category V conductor
Insulation: Environmentally friendly PVC
Color: Customizable upon request
Technical Parameters
Rated Voltage: 450/750V
Test Voltage: 2500V
Rated Temperature: -15°C to +70°C
Minimum Bend Radius: 6 x Cable OD
Environmental Requirements: RoHS and REACH Compliant
Flame Retardant: Compliant with IEC 60332-3
Product Features
Excellent flexibility and easy installation
Excellent peelability
Product Parameters
| Nominal cross-sectional area (mm²) | outer diameter （mm） | Cable weight（kg/km） | Nominal cross-sectional area (mm²) | outer diameter （mm） | Cable weight（kg/km） |
| 1.5 | 3 | 21 | 25 | 9.2 | 266 |
| 2.5 | 3.7 | 33 | 35 | 11.5 | 368 |
| 4 | 4.2 | 50 | 50 | 13.6 | 525 |
| 6 | 4.8 | 65 | 70 | 15.3 | 721 |
| 10 | 6.2 | 122 | 95 | 17.6 | 946 |
| 16 | 7.7 | 183 | 120 | 19.8 | 1187 |
