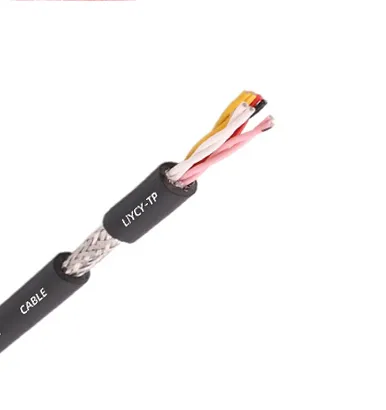

LiYCY-TP 300/300V

Flexible Twisted-Pair Shielded Data Transmission Cable

Applications

LiYCY-TP flexible twisted-pair shielded cable is designed for use in moderate mechanical stress environments, providing solutions for data transmission, measurement, and control applications. It is widely used in industrial automation, electromechanical equipment, machine tools, and other mechanical equipment. The twisted-pair cable reduces internal electromagnetic interference (EMI) within the cable, while the tinned copper braided shield provides strong resistance to external EMI, ensuring stable data and signal transmission.

Product Structure

Reference Standard: VDE 0812

Conductor: Multiple finely stranded bare copper wires, compliant with IEC 60228, Category 5 conductors

Insulation Material: Environmentally friendly PVC

Filling (optional): Mesh polypropylene or cotton filling

Sheath Material: Environmentally friendly PVC

Wire Twist: Twisted pairs

Shield Shield: Tinned copper wire braid, braid density ≥ 80%

Jacket Color: Black and other colors

JZ: Black core, numbered sequentially with white ink or laser printing, with a yellow-green ground wire

JB: Colored core, with a yellow-green ground wire

OZ: Black core, numbered sequentially with white ink or laser printing, without a yellow-green ground wire

0B: Colored core, without a yellow-green ground wire

Technical Parameters

Rated Voltage: 300V/300V

Test Voltage: 2000V

Rated Temperature: -20°C to +70°C

Minimum Bend Radius:

Fixed Installation: 4 x Cable OD

Mobile Installation: 10 x Cable OD

Environmental Requirements: RoHS and REACH Compliant

Flame Retardant: Complies with IEC60332-1-2

Product Features

Small cable OD, saving installation space

Excellent internal and external electromagnetic interference immunity

Excellent mechanical properties

Product Parameters

Number of cores × cross-sectional area	outer diameter（mm）	Cable weight（kg/km）	Number of cores × cross-sectional area	outer diameter（mm）	Cable weight（kg/km）
2x2x0.25	5.4	38	2x2x0.34	6.1	44
3x2x0.25	5.7	48	3x2x0.34	7.3	56
4x2x0.25	6.8	59	4x2x0.34	8	69
5x2x0.25	7.4	60	5x2x0.34	8.8	90
6x2x0.25	7.9	80	6x2x0.34	10.5	115
8x2x0.25	8.8	98	8x2x0.34	10.5	129
10x2x0.25	9.6	115	10x2x0.34	11.6	166
12x2x0.25	10.1	150	12x2x0.34	12.5	190
16x2x0.25	11.7	186	16x2x0.34	14.4	240
20x2x0.25	13	209	20x2x0.34	15.8	290
2x2x0.5	7	72	2x2x0.75	7	72
3x2x0.5	7.8	83	3x2x0.75	7.8	83
4x2x0.5	8.8	115	4x2x0.75	8.8	115
5x2x0.5	9.9	120	5x2x0.75	9.9	120
6x2x0.5	11	168	6x2x0.75	11	168
8x2x0.5	11.9	206	8x2x0.75	11.9	206
10x2x0.5	12.9	247	10x2x0.75	12.9	247
12x2x0.5	14.1	285	12x2x0.75	14.1	285
16x2x0.5	16	373	16x2x0.75	16	373
20x2x0.5	18.1	392	20x2x0.75	18.1	392
