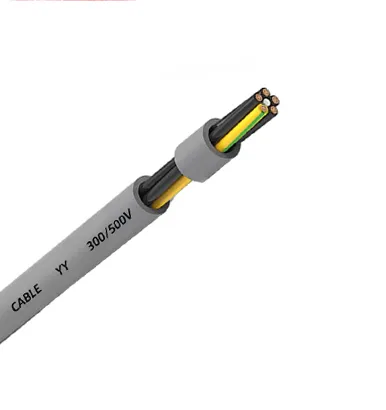

YY 300/500V

Flexible PVC Unshielded Control Cable

Product Applications

YY flexible PVC unshielded control cables provide solutions for data transmission, measurement, and control applications. These cables are not only flexible and pliable, but also heat-resistant and oil-resistant. They are widely used in industrial automation, electromechanical equipment, machine tools, and other mechanical equipment. They can be installed outdoors, but direct burial is not permitted.

Product Structure

Reference Standard: VDE 0250

Conductor: Multiple fine-stranded bare copper wires, conforming to IEC 60228, Category 5 conductors

Insulation: Environmentally friendly PVC

Filling (optional): Mesh polypropylene filling or cotton filling

Sheath Material: Environmentally friendly PVC

Sheath Color: Gray and other colors

JZ: Black core, numbered sequentially with white ink or laser-printed numbers, with a yellow-green ground wire

JB: Colored core with a yellow-green ground wire

OZ: Black core, numbered sequentially with white ink or laser-printed numbers, without a yellow-green ground wire

0B: Colored core without a yellow-green ground wire

Technical Parameters

Rated Voltage: 300/500V

Test Voltage: 2000V

Rated Temperature: -20°C to +70°C

Minimum Bend Radius:

Fixed Installation: 5X Cable OD

Mobile Installation: 10X Cable OD

Environmental Requirements: RoHS Compliant REACH

Flame retardant properties: Complies with IEC60332-1-2

Product Features

Excellent mechanical properties

Oil resistance in accordance with DIN EN 50290-2-22
