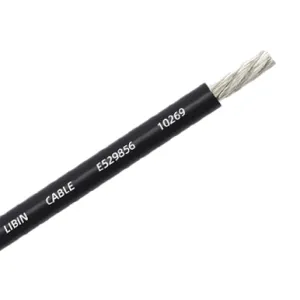

UL10269
80°C, 90°C, 105°C, 1000V Flexible PVC Insulated Wire
Applications
Suitable for internal connections in general electrical appliances, electronic equipment, and photovoltaic inverters
Product Structure
Compliant Standards: UL758, UL1581
Conductor: Single or stranded bare/tinned copper wire
Specifications: 30AWG-2000kcmil
Insulation: Environmentally friendly PVC
Color: Customizable
Technical Parameters
Rated Voltage: 1000V
Rated Temperature: 80°C, 90°C, 105°C
Minimum Bend Radius:
Fixed Installation: 6x Cable OD
Mobile Installation: 10x Cable OD
Flame Retardant: Passed UL VW-1 Vertical Flame Test
Environmental Requirements: RoHS REACH Compliant
Product Features
Excellent flexibility and easy installation
Uniform insulation thickness, easy to strip and cut
| UL Model | Specification (AWG) | Conductor structure TXR(mm) | Insulation thickness (mm) | Approximate outer diameter of cable (mm) | Conductor resistance at 20℃ max (Ω/km) |
| UL10269 | 26AWG | 7/0.16 | 0.76 | 2.1 | 149.94 |
| 24AWG | 11/0.16 | 2.2 | 93.25 | ||
| 22AWG | 17/0.16 | 2.4 | 59.7 | ||
| 20AWG | 26/0.16 | 2.6 | 37.6 | ||
| 18AWG | 63/0.127 | 2.8 | 23.6 | ||
| 16AWG | 105/0.127 | 3.1 | 14.9 | ||
| 14AWG | 168/0.27 | 3.5 | 9.34 | ||
| 12AWG | 259/0.127 | 4.1 | 5.88 | ||
| 10AWG | 413/0.127 | 4.7 | 3.7 | ||
| 8AWG | 658/0.127 | 1.14 | 6.5 | 2.35 | |
| 6AWG | 1029/0.127 | 1.52 | 8.4 | 1.18 | |
| 4AWG | 1638/0.127 | 9.5 | 0.928 | ||
| 2AWG | 2604/0.127 | 11.5 | 0.584 | ||
| 1AWG | 3283/0.127 | 2.03 | 13.9 | 0.449 | |
| 1/OAWG | 4137/0.127 | 14.8 | 0.345 | ||
| 2/OAWG | 5225/0.127 | 16 | 0.273 | ||
| 3/OAWG | 6574/0.127 | 17.5 | 0.217 | ||
| 4/OAWG | 8284/0.127 | 19.5 | 0.172 |
