UL10684 1000V 105℃ Energy Storage Cable

An Energy Storage Cable is designed for reliable and efficient power transmission between batteries, inverters, and energy management systems. Built with high conductivity materials and advanced insulation, these cables ensure safe operation in high-voltage and high-current environments. Energy storage cables are widely used in solar power systems, wind energy projects, battery energy storage systems (BESS), and electric vehicle charging infrastructure. Offering durability, flexibility, and superior thermal resistance, they help optimize energy efficiency, support renewable energy integration,...

Inquiry

E-mail：470647052@qq.com

WhatsApp：+86 13391229506

Detailed Description

UL10684

105°C 1000V Double-layer PVC Non-Integral Single-core Cable

Applications

Suitable for internal wiring of general electrical appliances, electronic equipment, and electrical products

Product Structure

Compliant Standards: UL758 UL1581

Conductor: Single or stranded bare/tinned copper wire

Specifications: Minimum 32AWG

Insulation: Environmentally friendly PVC insulation

Shielding (optional): Tinned/bare copper wire braiding density ≥ 80%

Jacket: Environmentally friendly PVC insulation

Color: Customizable upon request

Technical Parameters

Rated Voltage: 1000V

Rated Temperature: 105°C

Minimum Bend Radius:

Fixed Installation: 6 x Cable OD

Mobile Installation: 12 x Cable OD

Flame Retardant: Passes the ULVW-1 vertical flame test.

Environmental Requirements: RoHS compliant and REACH compliant

Product Model

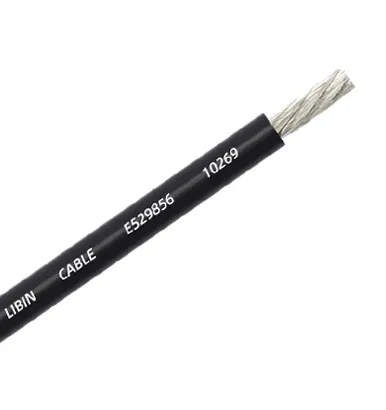

UL10684 105°C 1000V Single-Conductor Unshielded Cable

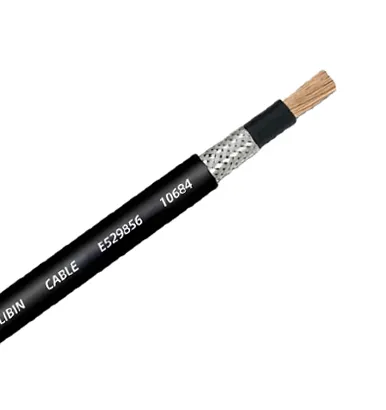

UL10684 105°C 1000V Single-Conductor Shielded Cable

Product Features

Uniform insulation thickness, easy to strip and cut

UL model	Specificatio n(AWG)	Conductor structure TXR(mm)	Insulation thickness (mm)	Approximate outer diameter of insulation (mm)	Sheath thickness (mm)	Approximate outer diameter of cable ( mm )	Conductor resistance at 20°C max (Ω/km)
UL10684	26AWG	7/0.16	0.76	2.1	0.76	3.62	149.94
	24AWG	1/0.16		2.2		3.72	93.25
	22AWG	17/0.16		2.4		3.92	59.7
	20AWG	26/0.16		2.6		4.12	37.6
	18AWG	41/0.16		2.8		4.32	23.6
	16AWG	26/0.254		3.1		4.62	14.9
	14AWG	41/0.254		3.5		5.02	9.34
	12AWG	65/0.254		4		5.52	5.88
	10AWG	105/0.254		4.7		6.22	3.7
	8AWG	164/0.254	1.14	6.5		8.02	2.35
	6AWG	260/0.254	1.52	8.4		9.92	1.18
	4AWG	412/0.254		9.5		11.02	0.928
	2AWG	665/0.254		11.5		13.02	0.584
	1AWG	820/0.254		13.9		15.42	0.449
	1/OAWG	1035/0.254	2.03	14.8		16.32	0.345
	2/OAWG	1311/0.254		16		17.52	0.273
	3/OAWG	1650/0.254		17.5	1.14	19.78	0.217
	4/OAWG	2090/0.254		19.5	1.14	21.78	0.172
