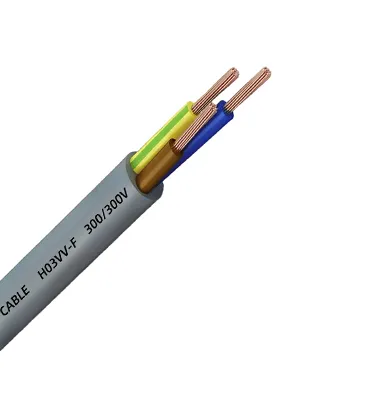

H03VV-F300/300V
Copper core PVC insulated PVC sheathed flexible cable
Applications
Suitable for low-power power connections in household appliances, lighting, instrumentation, small power tools, etc. However, it is not suitable for outdoor use or for frequent movement in drag chains.
Product Structure
Reference Standard: EN50525-2-11
Conductor: Multiple fine-stranded bare copper wires, in accordance with EN60228, Category 5 conductors
Insulation: Environmentally friendly PVC
Filling (optional): Mesh polypropylene or cotton filling
Sheath Material: Environmentally friendly PVC
Sheath Color: Black and other colors
Wire Color: Color-coded or black with printed numbers
Cable Size:
Round Cable: 0.5mm² and 0.75mm², 2-, 3-, and 4-core
Flat Cable: 0.5mm² and 0.75mm², 2-core only
Technical Parameters
Rated Voltage: 300/300V
Test Voltage: 2000V
Rated Temperature: -15°C to +70°C
Minimum Bend Radius:
Fixed Installation: 6x Cable OD
Mobile Installation: 15x Cable OD
Environmental Requirements: RoHS Compliant REACH
Flame Retardant: Complies with IEC60332-1-2
Product Features
Mechanical Properties
Good Peelability
Product Parameters
| Number of cores × cross-sectional area | Insulation thickness (mm) | Sheath thickness (mm) | Cable outer diameter range (mm) | 70℃ Insulation resistance .min(MO *km) | Conductor resistance at 20°C.max(Q/km) |
| 2×0.5 | 0.5 | 0.6 | 4.6-5.9 | 0.011 | 39 |
| 3.0*4.9-3.7*5.9 | |||||
| 2x0.75 | 0.5 | 0.6 | 4.9-6.3 | 0.010 | 26 |
| 3.2*5.2-3.8*6.3 | |||||
| 3x0.5 | 0.5 | 0.6 | 4.9-6.3 | 0.011 | 39 |
| 3x0.75 | 0.5 | 0.6 | 5.2-6.7 | 0.010 | 26 |
| 4x0.5 | 0.5 | 0.6 | 5.4-6.9 | 0.011 | 39 |
| 4x0.75 | 0.5 | 0.6 | 5.7-7.3 | 0.010 | 26 |
