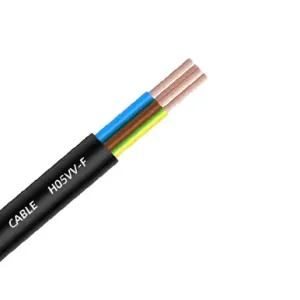

H05VV-F 300/500V
Copper core PVC insulated PVC sheathed flexible cable
Applications
Suitable for household appliances, lighting, instrumentation, power tools, automation equipment, and electrical control systems. However, it is not suitable for applications with frequent drag chains.
Product Structure
Reference Standard: EN50525-2-11
Conductor: Multiple finely stranded bare copper wires, in accordance with EN60228, Category 5 conductors
Insulation: Environmentally friendly PVC
Filling (optional): Mesh polypropylene or cotton
Sheath: Environmentally friendly PVC
Sheath Color: Black and other colors
Wire Color: Color-coded or black with printed numbers
Cable Size:
Round Cable: 0.75mm² and 4mm², 2-, 3-, 4-, and 5-core
Flat Cable: 0.5mm² and 1.5mm², 2-core only
Technical Parameters
Rated Voltage: 300/500V
Test Voltage: 2000V
Rated Temperature: -15°C to +70°C
Minimum Bend Radius:
Fixed Installation: 6 x Cable OD
Mobile Installation: 15 x Cable OD
Environmental Requirements: RoHS Compliant REACH
Flame Retardant: Complies with IEC60332-1-2
Product Features
Mechanical Properties
Good Peelability
Product Parameters
| Number of cores × cross-sectional area | Insulation thickness （mm） | Sheath thickness（mm） | Cable outer diameter range（mm） | Insulation resistance at 70℃.min（MΩ*km） | Conductor resistance at 20°C.max（Ω/km） |
| 2x0.75 | 0.6 | 0.8 | 5.7-7.2 | 0.011 | 26 |
| 3.7*6.0-4.5*7.2 | |||||
| 3x0.75 | 0.6 | 0.8 | 6.0-7.6 | 0.011 | 26 |
| 4x0.75 | 0.6 | 0.8 | 6.6-8.3 | 0.011 | 26 |
| 5x0.75 | 0.6 | 0.9 | 7.4-9.3 | 0.011 | 26 |
| 2x1.0 | 0.6 | 0.8 | 5.9-7.5 | 0.01 | 19.5 |
| 3.9*9.2-4.7-7.5 | |||||
| 3x1.0 | 0.6 | 0.8 | 6.3-8.0 | 0.01 | 19.5 |
| 4x1.0 | 0.6 | 0.9 | 7.1-9.0 | ||
| 5x1.0 | 0.6 | 0.9 | 7.8-9.8 | 0.01 | 19.5 |
| 2x1.5 | 0.7 | 0.8 | 6.8-8.6 | 0.01 | 13.3 |
| 4.2*7.0-5.2*8.6 | |||||
| 3x1.5 | 0.7 | 0.9 | 7.4-9.4 | 0.01 | 13.3 |
| 4x1.5 | 0.7 | 1 | 8.4-10.5 | 0.01 | 13.3 |
| 5x1.5 | 0.7 | 1.1 | 9.3-11.6 | 0.01 | 13.3 |
| 2x2.5 | 0.8 | 1 | 8.4-10.6 | 0.0095 | 7.98 |
| 3x2.5 | 0.8 | 1.1 | 9.2-11.4 | 0.0095 | 7.98 |
| 4x2.5 | 0.8 | 1.1 | 10.1-12.5 | 0.0095 | 7.98 |
| 5x2.5 | 0.8 | 1.2 | 11.2-13.9 | 0.0095 | 7.98 |
